> Layer 2 network management PoE switch
> Support IEEE802.3af, IEEE802.3at standard
> Support Hi-PoE 60W
> Network Redundancy: STP/RSTP/MSTP
> Support IPv4/IPv6, and DHCP
> Network management based on SNMP
> Configuration: Web, Telnet, CLI Command
> QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
> Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
> Large data cache(4M), real-time transmission
> MAC auto study and aging, MAC address list capacity is 8K
> EMC high protection design
|
Model |

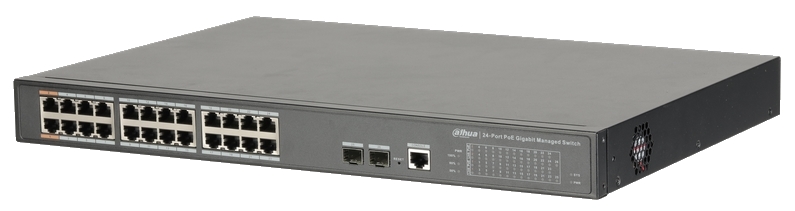

DH-PFS4226-24GT-360 |
|
Ethernet Port |
24*10/100/1000 Base-T (PoE power supply)
2*100/1000 Base-X |
|
RS232 Serial Console |
1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1 |
|
PoE Power Consumption |
Port1 and port 2 support Hi-PoE 60W
Each power ≤30W, Total≤360W |
|
PoE Protocol |
IEEE802.3af, IEEE802.3at, Hi-PoE |
|
Switching Capacity |
52Gbps |
|
Packet Forwarding Rate |
38.688Mpps |
|
Packet Buffer Memory |
4Mb |
|
Application Humidity |
5%~95% |
|
Power |
AC100-240V, 50/60Hz |
|
Lightning Protection |
Common Mode 2KV
Differential Mode 1KV |
|
Working Temperature |
-10°C~55°C |
|
Dimension(W×D×H) |
440mm x300mm x44mm |
|
