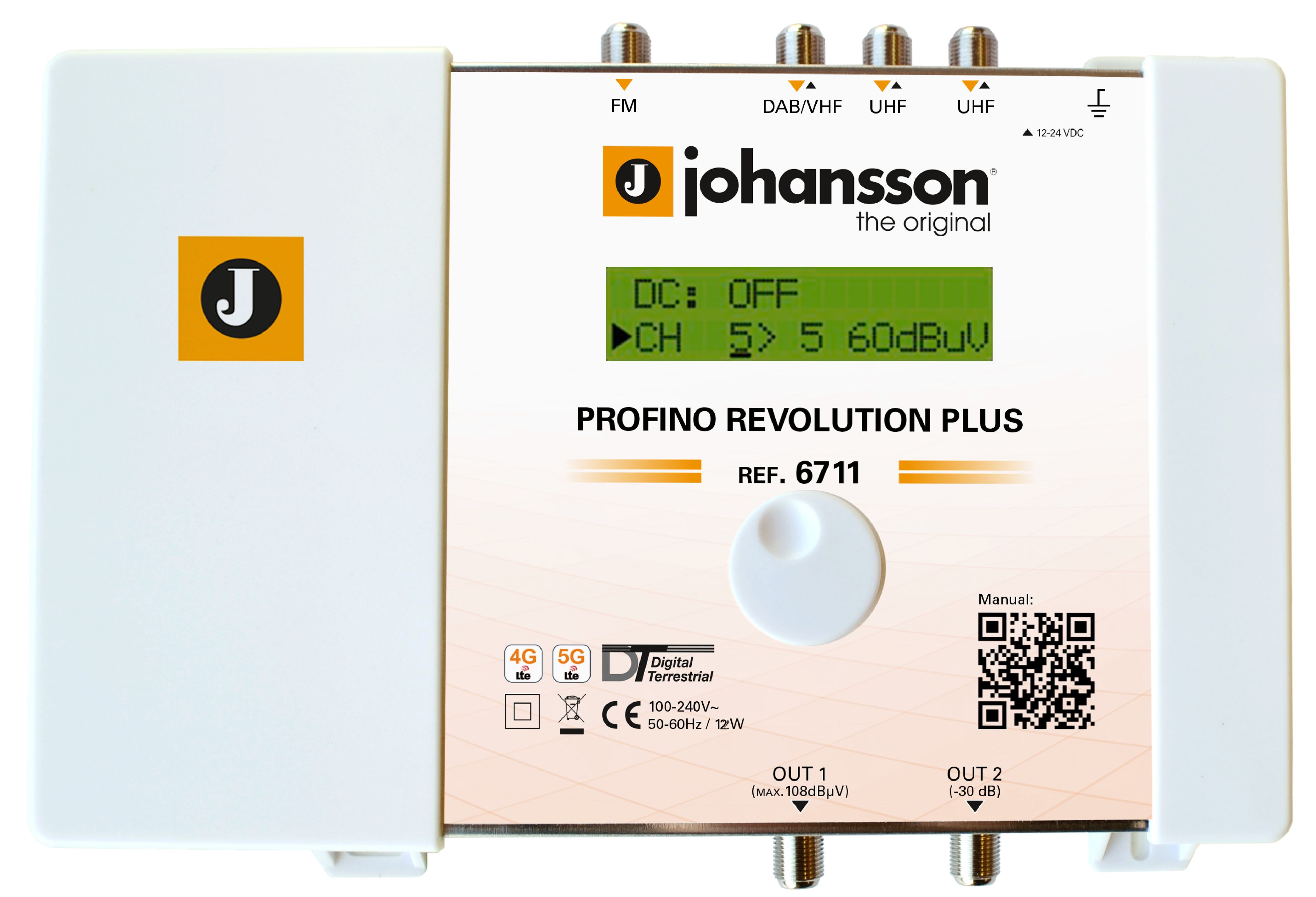

* Patent Pending
** For 64QAM with code rate 3/4
| - |
1FM + 1 DAB/VHF + 2 UHF |
| Outputs |
- |
1 main (FM-DAB-VHF-UHF) + 1 test port (-30dB) |
| Frequency range |
MHz
MHz
MHz |
FM: 88 - 108
VHF:174 - 240
UHF: 470 - 862 |
| LTE protection |
MHz |
Automatic selection: 694, 790 or OFF |
| Input level |
dBµV
dBµV
dBµV |
FM: 37 - 77
VHF: 45** - 109
UHF: 45** - 109 |
| FM output power (60dB/IM3 |
dBµV |
113 |
| VHF/UHF output power (60dB/IM3) |
dBµV |
115 |
| VHF/UHF output power (35dB/IM3) |
dBµV |
126 |
| VHF/UHF output power with 6 MUX |
dBµV |
108 |
| VHF/UHF output power with 15 MUX |
dBµV |
105 |
| - |
More than 50 (15 filters) |
Add channels
|
- |
Per 1, 2, 3, 4, 5 or 6 MUXes |
| Conversion |
- |
Yes (from any VHF-UHF channel to any VHF-UHF channel) |
| Gain |
dB
dB
dB |
FM: 35
VHF: > 60
UHF: > 60 |
| Gain adjustment |
dB
dB |
FM: 20
VHF/UHF: Channel AGC |
| General attenuator |
dB |
20 |
| dB |
15 |
| Selectivity |
dB/1MHz |
35 |
| Return Loss |
dB |
10 |
| Output MER |
dB
dB |
VHF: >35
UHF: >35 |
| ESD protection |
- |
All inputs |
|
Remote voltage for
preamp
Remote current |
V
mA |
12 or 24
100 (total for the 4 inputs) |
| Operating temperature |
°C |
-5 to +50 |
Power Supply
Power Consumption |
V
W |
100 - 240
12 |
| Dimensions |
mm |
217 x 165 x 59 |
| Weight |
kg |
0,8
|
|
